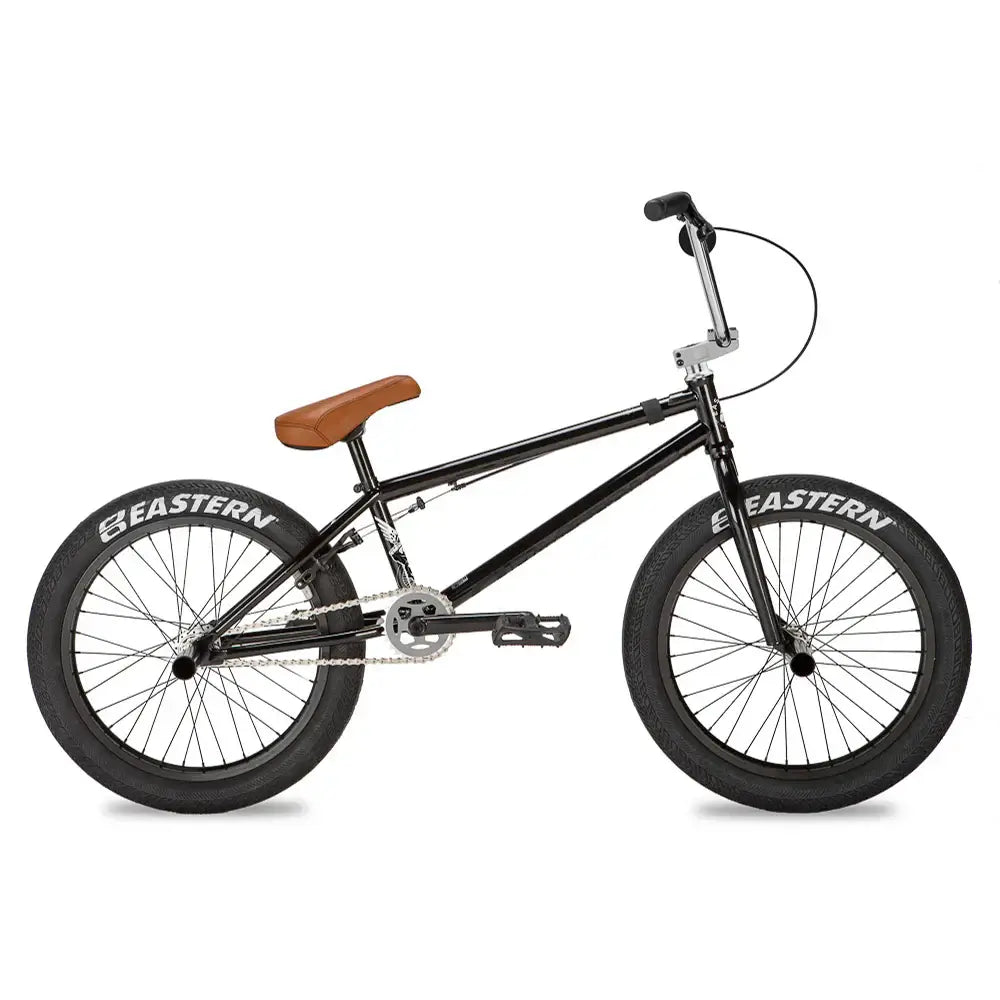

The expert level Eastern Shovelhead has been an Eastern staple for over a decade. A full chromoly frame, fork and bars provide lightweight performance. The Shovelhead is finished off with fully sealed hubs, 3-piece 48 Spline cranks, Squealer 100psi tires, alloy sprocket, double wall rims and our new Facet pedals.
(2 Steel Pegs Included)
25.6 Lbs
- Chromoly Frame
- Chromoly Fork
- Chromoly Bars
- Sealed Hubs
- 3 Piece 48 Spline Cranks
- Mid BB
- Integrated Headset
- Eastern Grips
- Alloy Eastern Phorcys Sprocket
- Pivotal Seat
- Double Wall Front and Rear Rims
- 2.4" Eastern Squealer 100psi Tires
- Eastern Facet Pedals
- 2 Cold Steel Pegs
*NOTICE: Once a bike ships the order can not be refunded
Full Chromoly Shovelhead 20", Removable Brake Mounts
Top Tube Size: 21.0″
BB: Mid
Headtube: Integrated
Chainstay Length: 13.38″
Clamp: Integrated with Frame
BARS
Full Chromoly 9.0"
Upsweep/Backsweep 12⁰/1⁰
FORK
Full Chromoly, Tapered Legs, 3/8" Dropouts
Fork Rake: 28mm
HEADSET Integrated 45°X45° Sealed Cartridge Bearing
STEM CNC Machined 6061 Missile Grade Aluminum Top Load Stem
GRIP Eastern Riblet Grips
CRANK 3-Piece, Tubular Heat-Treated Chromoly, 48-Splined Spindle, 170mm Arm Length
BOTTOM BRACKET Sealed Bearing Mid
CHAINWHEEL Eastern Phorcys, Alloy, 28T
CHAIN KMC Z510 1/2 x 1/8
PEDAL Eastern Facet Pedal with 9/16" Chromoly Axle
FRONT BRAKE N/A
FRONT LEVER N/A
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR

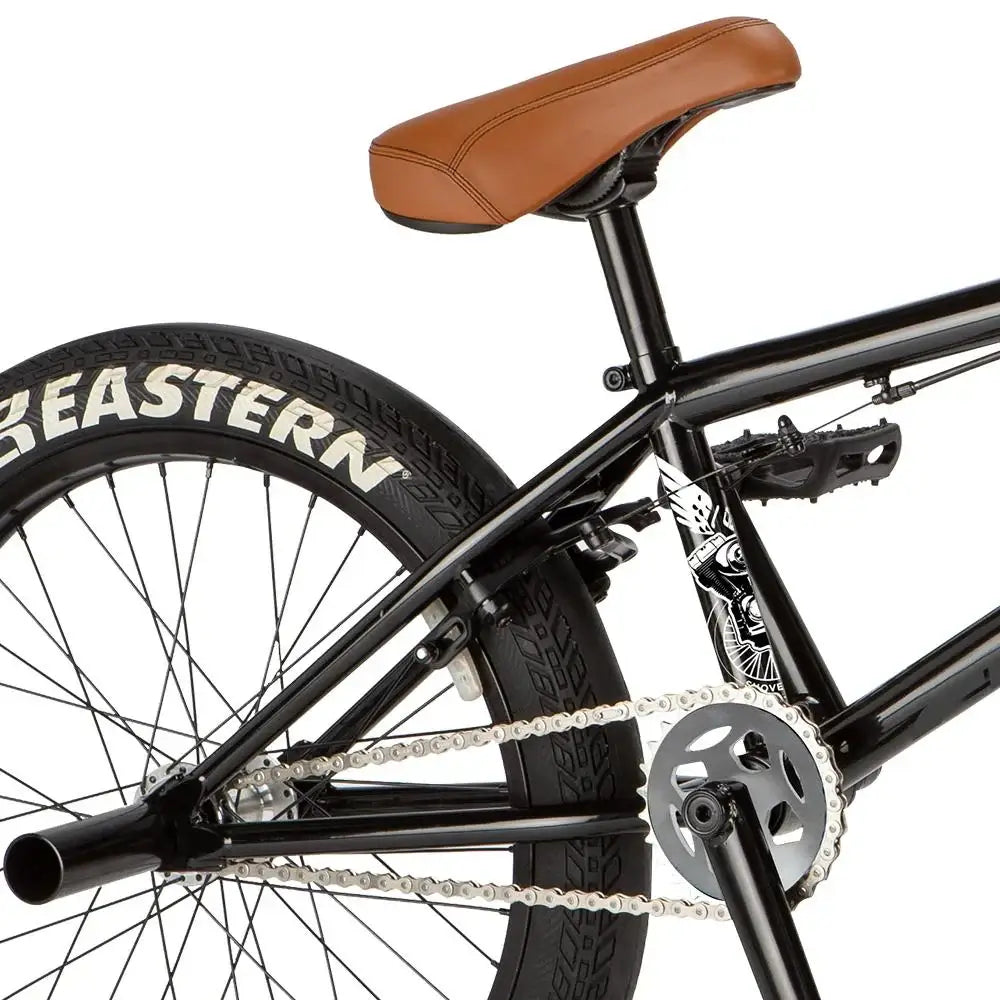

SADDLE Medium Width Pivotal Seat
POST Pivotal, Forged Alloy, 200mm

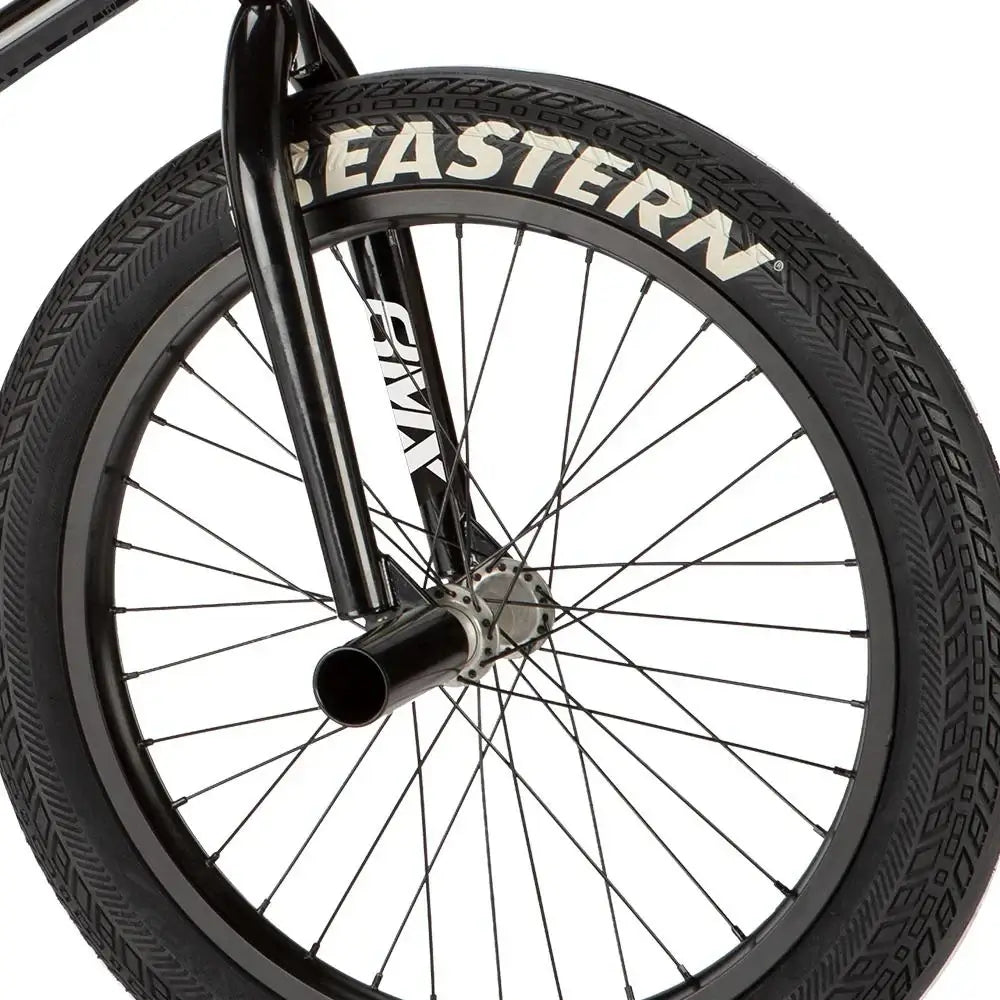

FRONT HUB Sealed Bearing, Forged Alloy Shell, Drilled for 36
Spokes, Female Axle System with 3/8" Allen Key Bolts

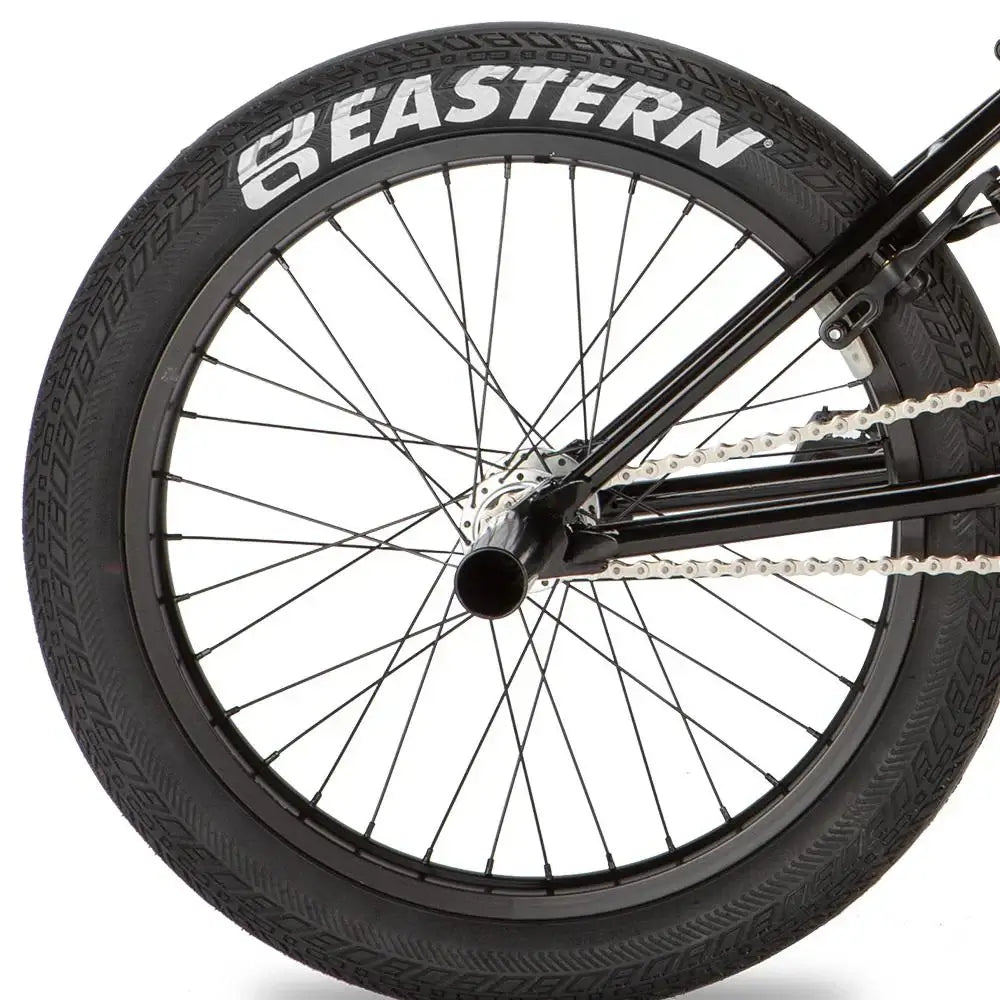

REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for
36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Driver with Hub
FRONT RIM Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires
REAR RIM Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires
SPOKES 14 Gauge with Brass Nipples
FRONT TIRE Eastern Squealer 100psi 20 x 2.40
REAR TIRE Eastern Squealer 100psi 20 x 2.40
PEG Cold Steel Pegs (2pcs)
Bikes are designed for riders 13 years old and up. *This pricing valid in USA only. Specs & pricing Subject to Change
