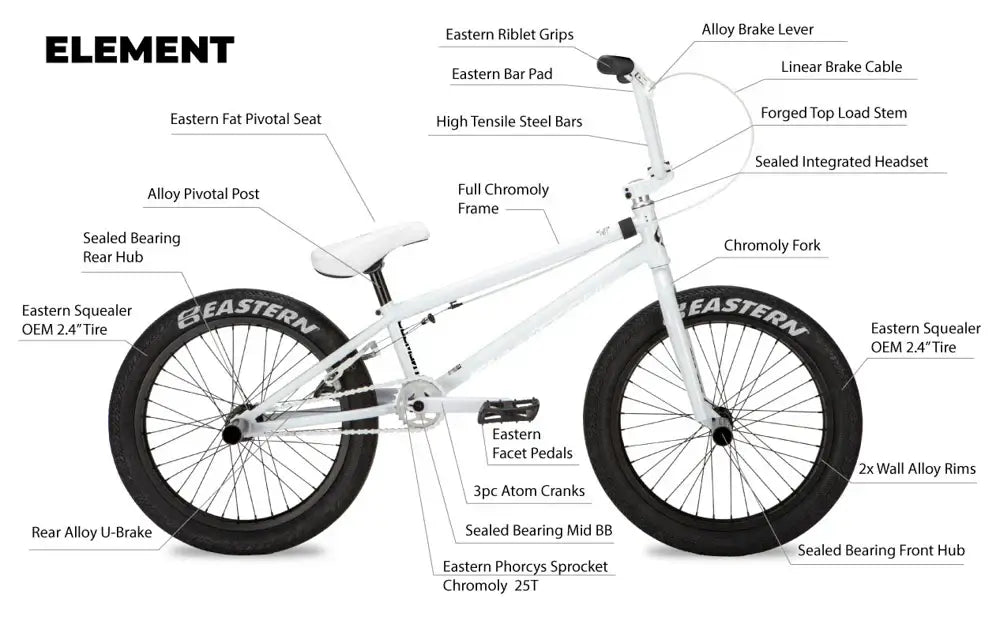

The expert level Eastern Element is a classic and is now built with a low slung full chromoly frame, plus a full chromoly fork, sealed bearing integrated headset, sealed front and rear hubs, a 3-piece chromo cranks, double wall rims and our new Squealer tires. (2 Steel Pegs Included)
25.8 Lbs
- NOW with Full Chromoly Frame
- Removable Brake Mounts
- Chromoly Fork
- Sealed Front and Rear Hubs
- 3 Piece Tubular Chromoly Cranks
- Mid BB
- Integrated Headset
- Double Wall Front and Rear Rim
- Eastern Riblet Grips
- Eastern Phorcys Sprocket
- Pivotal Seat
- 2.4" Eastern Squealer OEM Tires
- Eastern Facet Pedals
- 2 Cold Steel Pegs
*NOTICE: Once a bike ships the order can not be refunded
FRAME
Element 20"
Full Chromoly Frame
Top Tube Size: 20.75″
BB: Mid
Headtube: Integrated
Chainstay Length: 13.38″
Clamp: Integrated with Frame
Removable Brake Mounts
Upsweep/Backsweep 12⁰/1⁰
FORK
Full Chromoly, Tapered Legs, 3/8" Dropouts
Fork Rake: 28mm
HEADSET Integrated 45°X45° Sealed Cartridge Bearing
STEM Forged Alloy Top Load Stem
GRIP Eastern Riblet Grips
CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 165mm 31.8mm Round Arm
BOTTOM BRACKET Sealed Bearing Mid
CHAINWHEEL Eastern Phorcys, Chromoly, 25T
CHAIN KMC Z510 1/2 x 1/8
PEDAL Eastern Facet Pedal with 9/16" Chromoly Axle
FRONT BRAKE N/A
FRONT LEVER N/A
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR
SADDLE Medium Width Pivotal Seat
POST Pivotal, 200mm
FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36
Spokes, Female Axle System
REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for
36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Driver with Hub
FRONT RIM Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires
REAR RIM Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires
SPOKES 14 Gauge with Brass Nipples
FRONT TIRE Eastern Squealer OEM 20 x 2.40
REAR TIRE Eastern Squealer OEM 20 x 2.40
PEG Cold Steel Pegs (2pcs)
Bikes are designed for riders 13 years old and up. *This pricing valid in USA only. Specs & pricing Subject to Change
