Profile Design GMR 50/65 Carbon Tubeless Disc-Brake Wheelset
Profile Design GMR 50/65 Carbon Tubeless Disc-Brake Wheelset
Share
OVERVIEW
The GMR 50/65 is oriented towards triathlon use – the deeper rear wheel helps improve stability in the aerobars along with a small aero boost.
For road racing the wheelset suits a rider that intends to be on their own at some stage of the event.
The GMR 50/65 Tubeless Dis-Brake is optimized for wide tires with lower tire pressure to meet the performance needs of modern riders in search of low rolling resistance and high compliance. With an internal width of 19mm, the wheelset is well suited for rough roads and tests fastest with a 28mm tire in the majority of wind angles.
Specifications
- Combining a 65mm rear with a 50mm front improves aerodynamics and stability without compromising control.
- Centerlock disc rotor mount
- Extra stiff hub shell design.
- Proprietary precision machined alloy hubs.
- Sapim CX-Ray spokes with Sapim Polyax double square nipples.
- Sealed cartridge bearings.
- Hand-built assembly.
- Full Carbon Clincher, Tubeless Ready Rim.
- Disc brake.
TECH SPECS

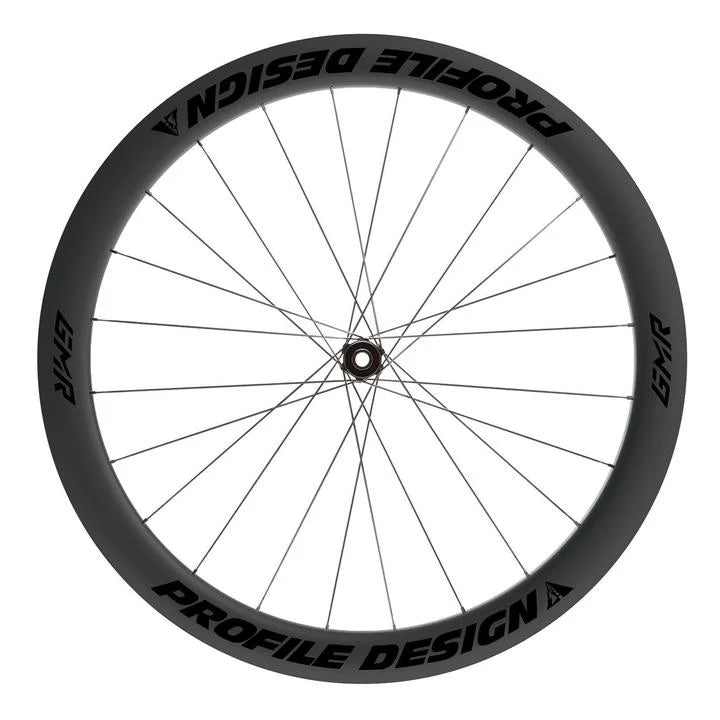

Front Wheel
- Weight: 770g
- Diameter: 700c
- Hub: 6061-T6 Alloy
- Bearing Size: 6901
- Hub Compatibility: 12 x 100mm (Through-Axle)
- Rotor Compatibility: Center Lock
- Rim Depth: 50mm
- Rim Width (Outside): 26mm
- Rim Width (Inside): 19mm
- Color: UD Carbon
- Spokes: Sapim® CX-Ray Aero Spoke
- Spoke Shape: Straight Pull, Bladed
- Spoke Count: 20
- Spoke Pattern Non-Drive: 2 cross
- Spoke Pattern Drive: 2 cross
- Spoke Length Non Drive: 270mm
- Spoke Length Drive 272mm
- Nipples: 7075 Alloy Polyax Double Square
- External Nipples: Yes
- Tire Compatibility: Tubeless Ready (TLR) / Clincher
- Max Tire Pressure: 70-100psi (also refer to Tire sidewall)
- Tire Width: 700c x 28-38mm

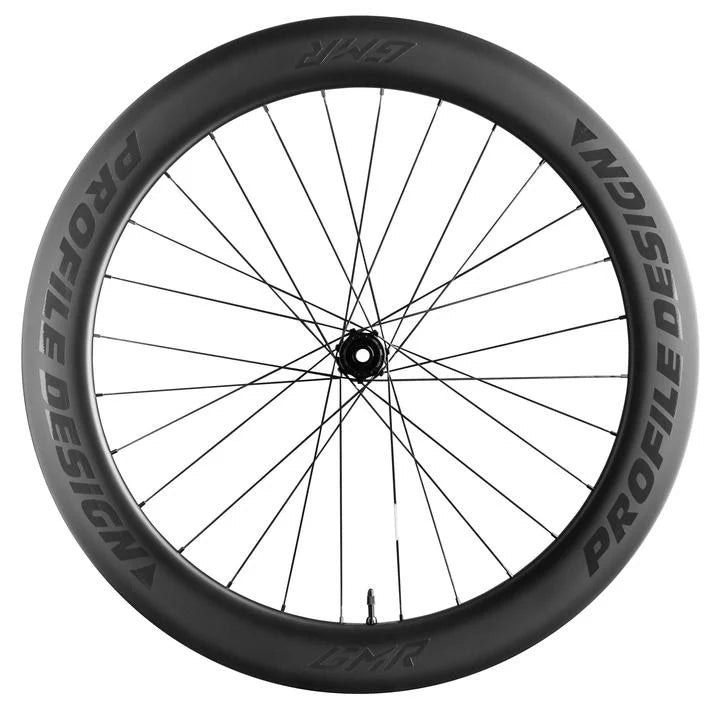

Rear Wheel
- Weight: 990g
- Diameter: 700c
- Hub: 6061-T6 Alloy
- Bearing Size: 6802
- Hub Compatibility: 12 x 142mm (Through-Axle)
- Rotor Compatibility: Center Lock
- Compatibility: Shimano/SRAM: 9/10sp, 11sp
- Rim Depth: 65mm
- Rim Width (Outside): 26mm
- Rim Width (Inside): 19mm
- Color: UD Carbon
- Spokes: Sapim® CX-Ray Aero Spoke
- Spoke Shape: Straight Pull, Bladed
- Spoke Count: 24
- Spoke Pattern Non-Drive: 3 cross
- Spoke Pattern Drive: 3 cross
- Spoke Length Non Drive: 260mm
- Spoke Length Drive: 259mm
- Nipples: 7075 Alloy Polyax Double Square
- External Nipples: Yes
- 11-Speed Compatible Hub: Yes
- 12-Speed Compatible Hub: Yes w/ (Aftermarket XDR Freehub purchase)
- Tire Compatibility: Tubeless Ready (TLR) / Clincher
- Max Tire Pressure: 70-100psi (also refer to Tire sidewall)
- Tire Width: 700c x 28-38mm

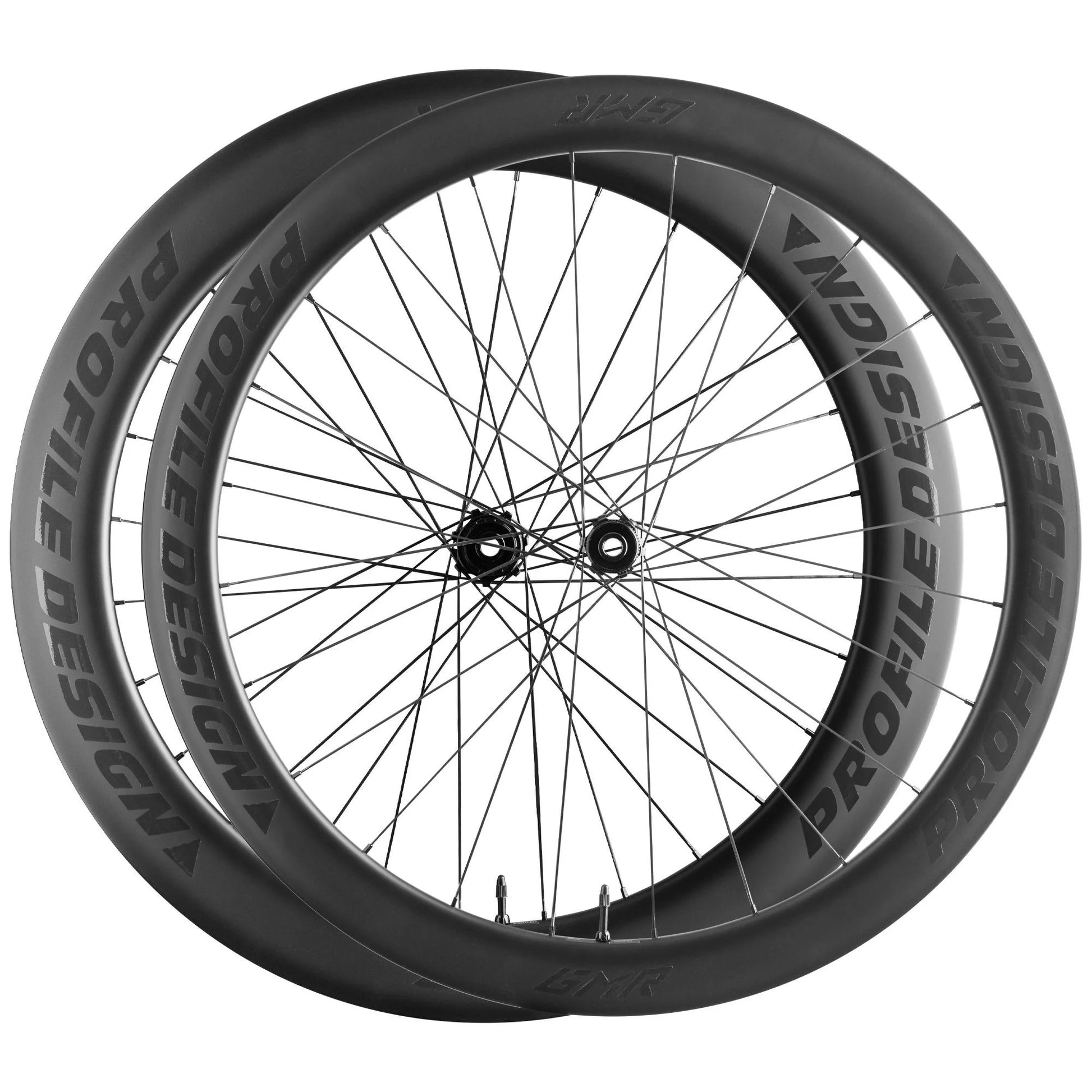

Wheelset
- Set Weight: 1760g
- Max Recommended Rider Weight (lbs): 220lbs
WHAT'S INCLUDED
- Tubeless valves Stems.
- Tubeless Rim Strip(s)
- 10 Speed Cassette spacer – (as these wheels are designed for SRAM, Shimano 11 speed cassettes)
- 2 x 270mm extra spokes
- 2 x 272mm extra spokes
- 2 x 259mm extra spokes
- 2 x 260mm extra spokes
- 8 extra nipples
- 8 extra nipple washers
MANUAL
GMR Carbon Tubeless Disc-Brake Wheelset Installation Instructions
