Profile Design GMR 50 Carbon Tubeless Rim-Brake Wheelset
Profile Design GMR 50 Carbon Tubeless Rim-Brake Wheelset
Share
OVERVIEW
The 50mm depth lends itself to racing, focusing more strongly on aerodynamics than the 38mm option.
As a daily wheelset it is suitable if you live in an area that isn’t prone to high winds.
Of course, if you’re an experienced rider and used to running deep section wheels, you can choose to use the GMR 50 in any conditions.
The GMR 50 Tubeless Rim-Brake is optimized for wide tires with lower tire pressure to meet the performance needs of modern riders in search of low rolling resistance and high compliance. With an internal width of 19mm, the wheelset is well suited for rough roads and tests fastest with a 28mm tire in the majority of wind angles.
Brake Performance
Specifically formulated to withstand the same heat our rims can take on, our brake pad compound is exclusive for GMR Series wheelsets. Using a specially formulated rubber compound, durometer and friction agent, we developed a proprietary brake pad and reduced braking distances over that of other carbon fiber wheelsets.
Specifications
- 50mm rim depth offers good aerodynamics without creating too much side profile
- High temperature resin for consistent braking on long descents.
- Extra stiff hub shell design.
- Proprietary precision machined alloy hubs.
- Sapim CX-Ray spokes with Sapim Polyax double square nipples.
- Sealed cartridge bearings.
- Hand-built assembly.
- Full Carbon Clincher, Tubeless Ready Rim.
- Rim brake.
TECH SPECS

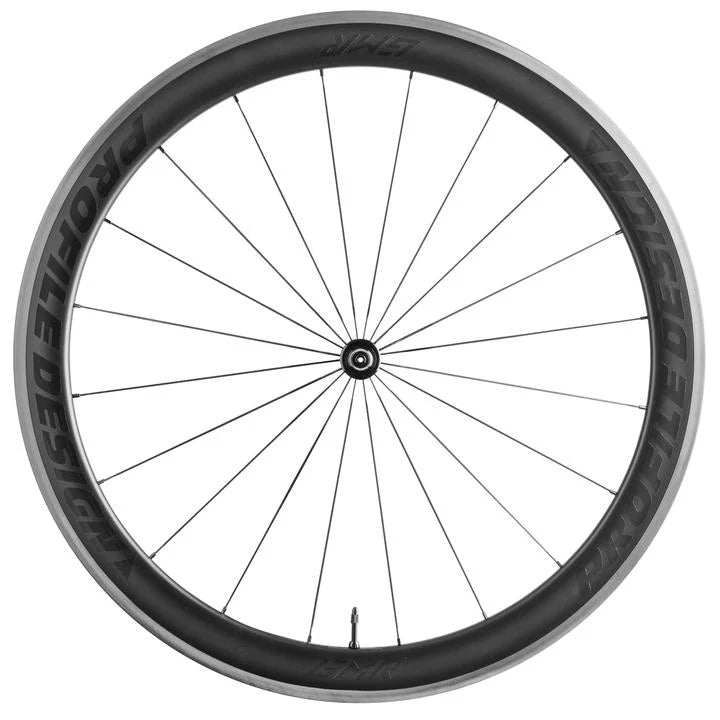

Front Wheel
- Weight: 675g
- Diameter: 700c
- Hub: 6061-T6 Alloy
- Bearing Size: 6901
- Hub Compatibility: QR
- Rim Depth: 50mm
- Rim Width (Outside): 26mm
- Rim Width (Inside): 19mm
- Color: UD Carbon
- Spokes: Sapim® CX-Ray Aero Spoke
- Spoke Shape: Straight Pull, Bladed
- Spoke Count: 20
- Spoke Pattern: Radial
- Spoke Length: 260mm
- Nipples: 7075 Alloy Polyax Double Square
- External Nipples: Yes
- Tire Compatibility: Tubeless Ready (TLR) / Clincher
- Max Tire Pressure: 70-100psi (also refer to Tire sidewall)
- Tire Width: 700c x 28-38mm

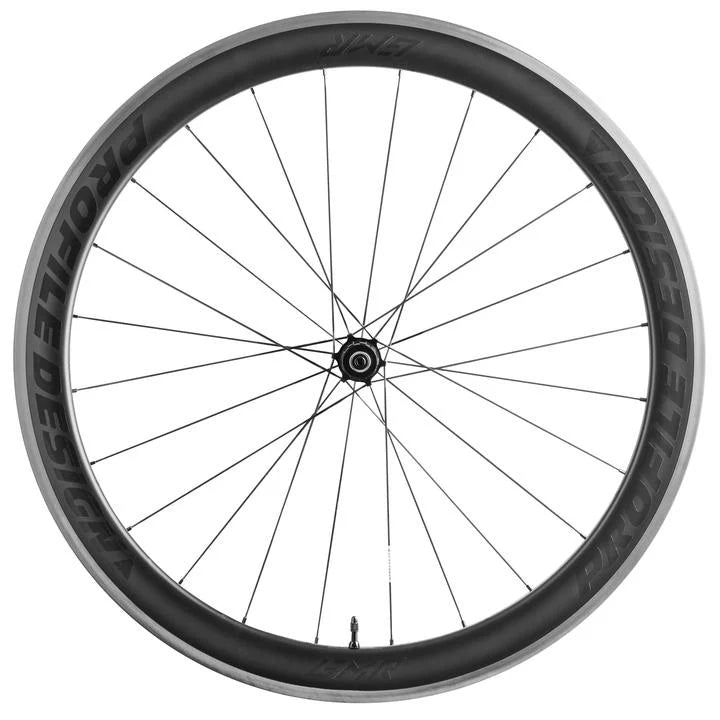

Rear Wheel
- Weight: 866g
- Diameter: 700c
- Hub: 6061-T6 Alloy
- Bearing Size: 6802
- Cassette Compatibility: Shimano/SRAM: 9/10sp, 11sp
- Hub Compatibility: QR
- Rim Depth: 50mm
- Rim Width (Outside): 26mm
- Rim Width (Inside): 19mm
- Color: UD Carbon
- Spokes: Sapim® CX-Ray Aero Spoke
- Spoke Shape: Straight Pull, Bladed
- Spoke Count: 24
- Spoke Pattern Non-Drive: Radial
- Spoke Pattern Drive: 2 cross
- Spoke Length Non Drive: 261mm
- Spoke Length Drive: 268mm
- Nipples: 7075 Alloy Polyax Double Square
- External Nipples: Yes
- 11-Speed Compatible Hub: Yes
- 12-Speed Compatible Hub: Yes w/ (Aftermarket XDR Freehub purchase)
- Tire Compatibility: Tubles Ready (TLR) / Clincher
- Max Tire Pressure: 70-100psi (also refer to Tire sidewall)
- Tire Width: 700c x 28-38mm

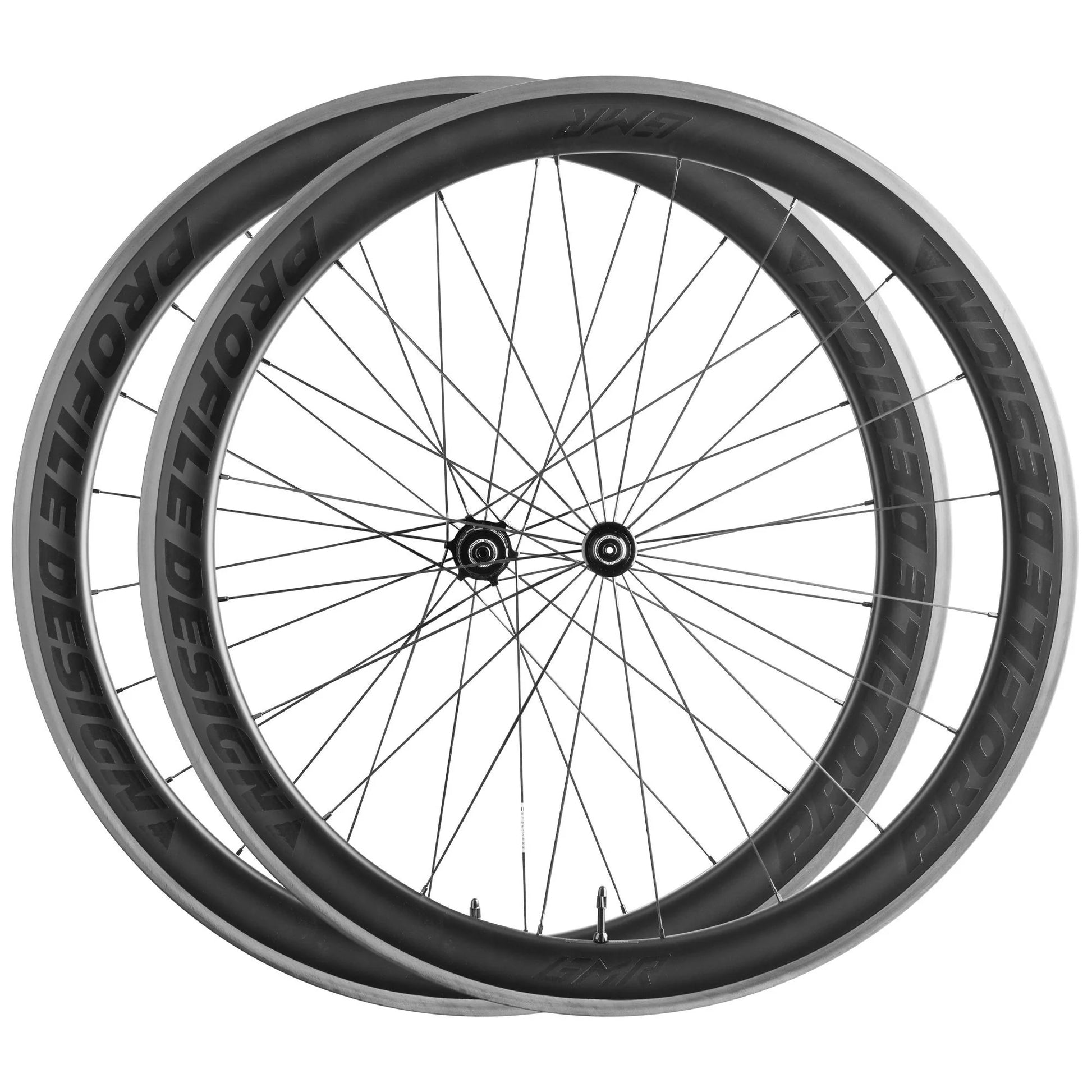

Wheelset
- Set Weight: 1541g
- Max Recommended Rider Weight (lbs): 220lbs
WHAT'S INCLUDED
- Tubeless valves Stems.
- Tubeless Rim Strip(s)
- 10 Speed Cassette spacer – (as these wheels are designed for SRAM, Shimano 11 speed cassettes)
- Profile Design quick-release skewers.
- Profile Design Carbon-Specific P220 GMR Series brake pads.
- 2 x 260mm extra spokes
- 2 x 268mm extra spokes
- 2 x 261mm extra spokes
- 6 extra nipples
- 6 extra nipple washers
