OVERVIEW

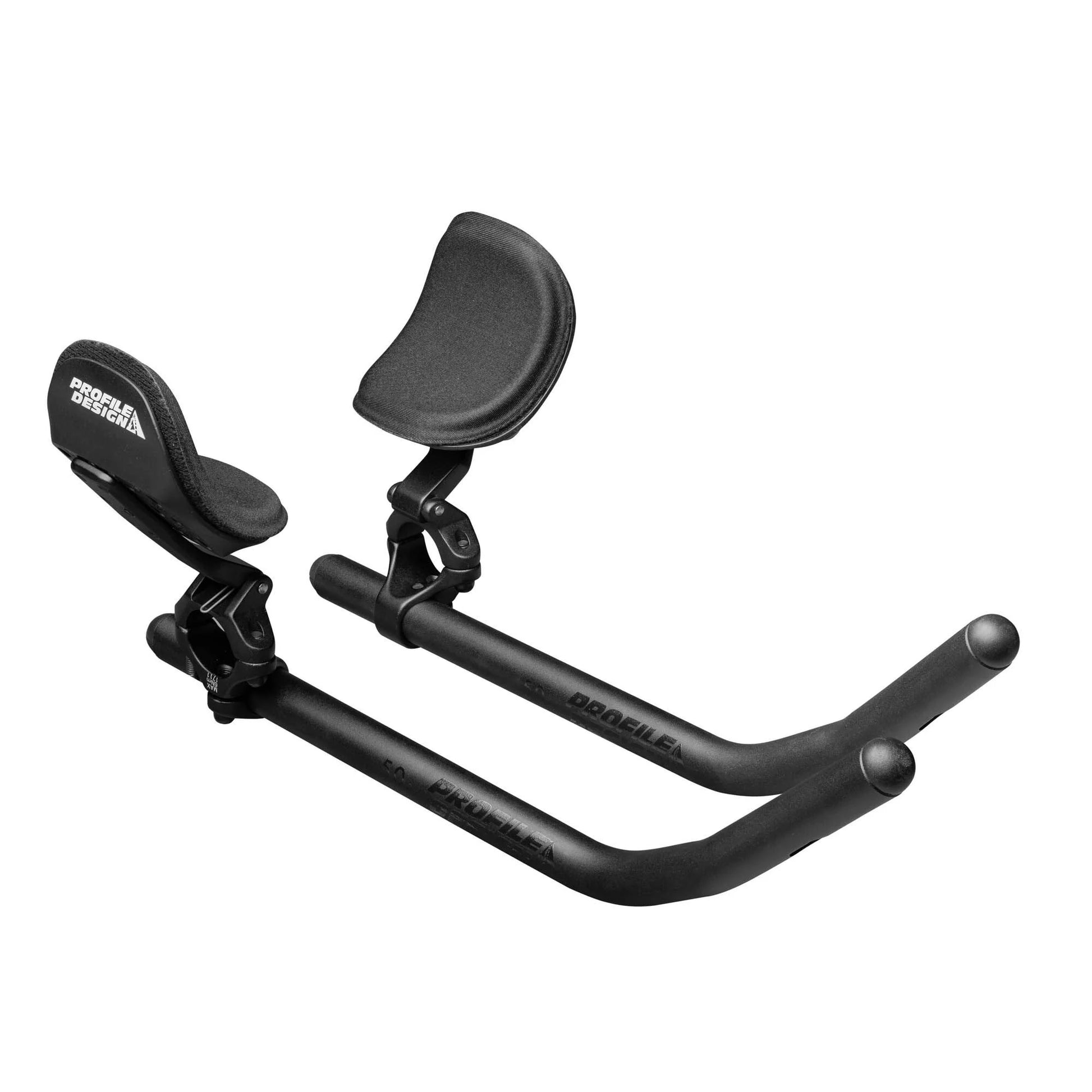

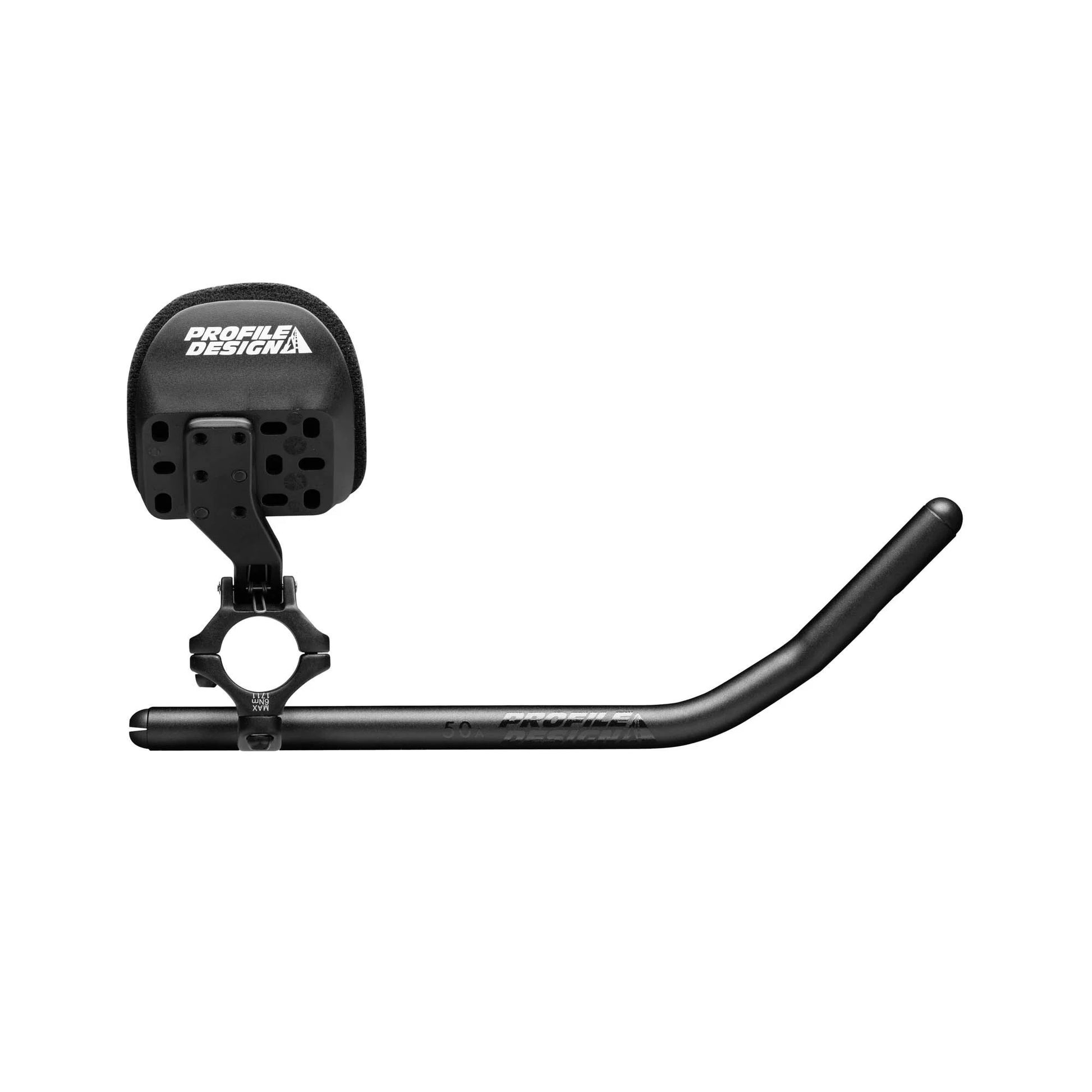

The Flip bracket offers our new generation fit range paired to classic Profile Design spring loaded arms allowing the armrests to sit up, out of the way when not in use.
Pairing this bracket with the ergo armrest offers industry leading fit options and greater comfort.
With the 50a extensions this aerobar encourages a neutral wrist angle.
Performance
The Flip/Ergo platform is designed to give riders the freedom to find an optimal low stack position with the ability to hold the bar tops when climbing.
There are 80 distinct position options achievable just by moving the armrest. As a clip on bar it also possible to adjust the extension width, length and tilt easily.
Fit Data
- Armrest Offset: -85mm to -17.55mm in 7.5mm steps
- Armrest Width: 112mm to 280mm in 18.5mm steps (With Extensions at 100mm)
- Armrest Stack: 40mm
Extensions
- Extension Shape: A 50a extensions offer a 50° ski bend shape.
- The 50a offer a 7.5mm lateral shift per side. This allows the rider to get their hands narrower or wider without tilting the extensions so much that the shifters touch.
TECH SPECS
- Bracket: Flip
- Clamp Diameter: 31.8mm (26.0 w/Shims)
- Armrest: Ergo / 10mm Pads
- Armrest Width: 112mm to 280mm in 18.5mm steps (with Extensions at 100mm)
- Armrest Offset: -85mm to -17.5mm in 7.5mm steps
- Armrest Stack: 40mm
- Color: Matte Black
- Weight: 587g
TECH GUIDE
Torque settings (all bolts are M6)
- Bar Clamp: 6Nm
- Extension Clamp: 5Nm
- Armrest Bolts: 4.7Nm
Weight
- Bracket: 242g
- Armrest: 145g
- Extensions: 200g
- Total: 587g
