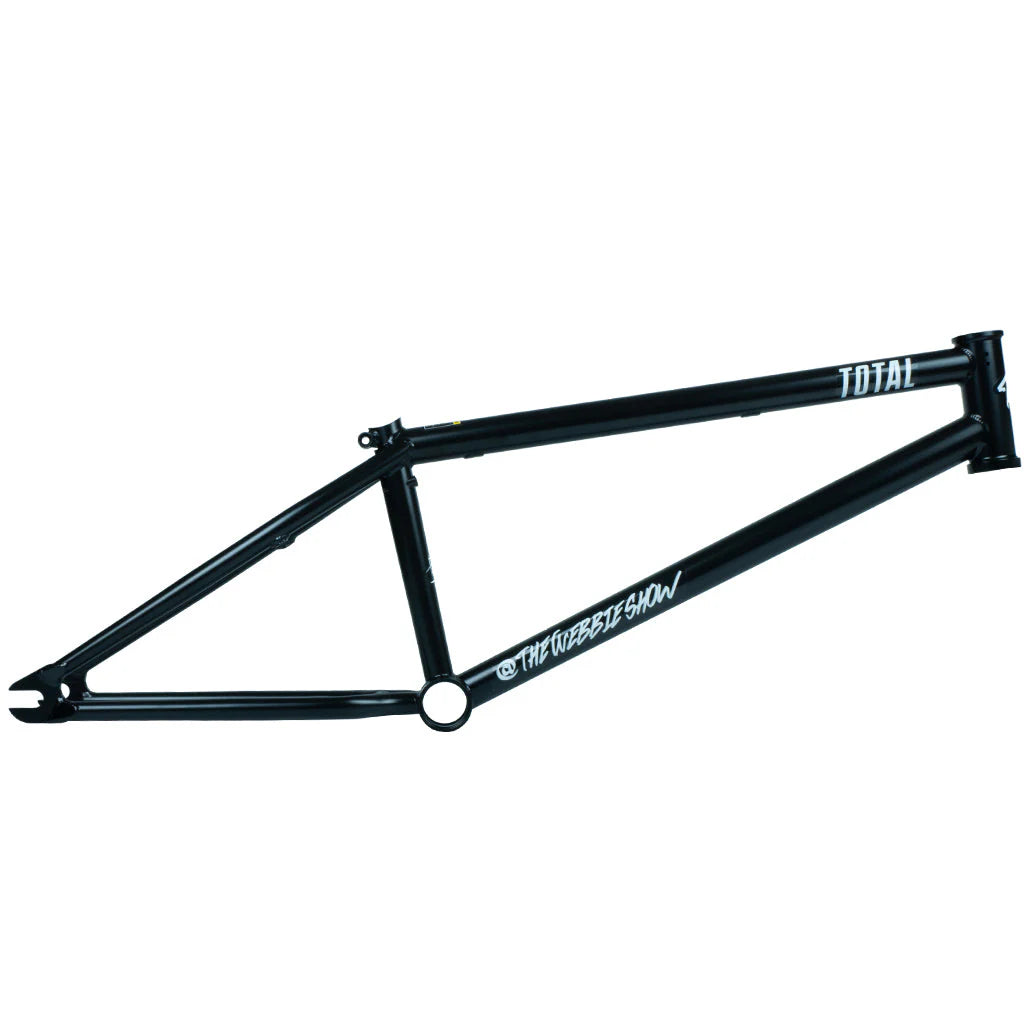

Mark Webb has kept his geometry the same but added the exclusive DBS brake routing system to the frame, he feels the geometry is right on point and making a change would simply be for the sake of it, rather than something that was needed. He has however added some really fresh new colours to brighten things up.
Specification:
- Full Multi Butted Sanko 4130 Chromoly
- Head Tube Angle: 75.5º
- Seat Tube Angle: 71º
- Standover Height: 8.75” (centre of BB to centre of TT)
- Rear End Length: 13.2” - 13.4”
- Top Tube: 32mmø Multi butted
- Down tube tapered 36mmø to 32mm, butted with offset thickness in key areas
- Tapered chain stays 19mm-16mm
- Tapered seat stays 19mm-14mm
- BB Height: 11.5”, low and good for stability
- Tapered seat tube with power clamp
- Headtube: Integrated and heat treated 120mm length
- Removable brake mounts plus DBS kit and tabs all included (other brands charge extra)
- Brake Mod, 'DBS' (Dual Brake System) excusive to Total frames
- Dropouts: 6mm thick heat treated with integrated chain adjusters
